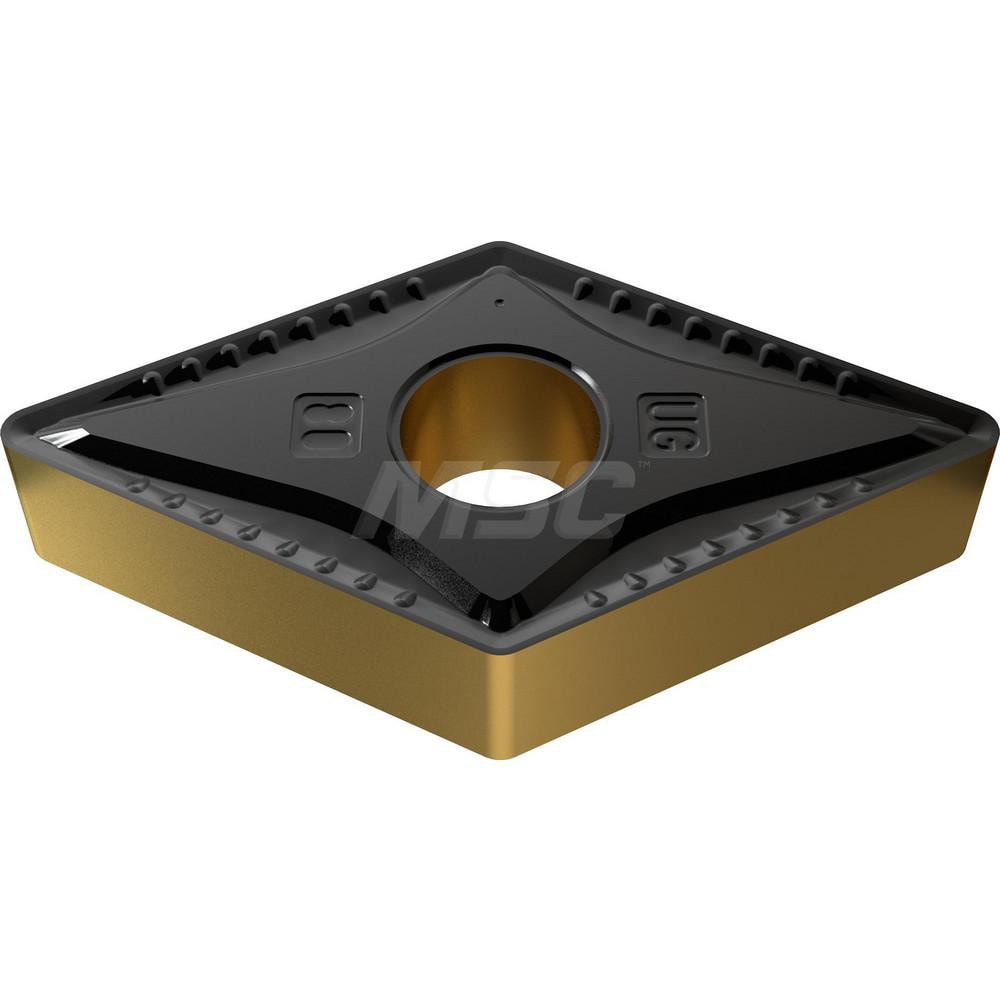

22000368 DNMG150408-UG-YG3030/DNMG432-UG YG3030 YG1

Specifications
ANSI Insert Code DNMG432
ISO Insert Code DNMG150408
Insert Style DNMG
Corner Radius (Inch) 1/32
Corner Radius (Decimal Inch) 0.0312
Included Angle 55
Manufacturer Grade YG3030
Coating/Finish TiCN; Al2O3
Wiper Edge No
Insert Hand Neutral
Insert Thickness (Inch) 3/16
Insert Thickness (Decimal Inch) 0.1875
Series DNMG
Inscribed Circle (Decimal Inch) 0.5000
Inscribed Circle (Inch) 1/2
Insert Material Carbide
Insert Shape D - Diamond (Rhombic) 55-Deg
Side Clearance Negative
Number Of Cutting Edges 4
Insert Shape Code D
Maximum Depth of Cut (Decimal Inch) 0.1180
Insert Holding Method Pin; Clamp
Width (Inch) 1/2
Clearance Code N
Tolerance Code M
Coating Process CVD
Length Range (Decimal Inch) 0.7000 - 10.0000
Rake Negative
Insert Length (Decimal Inch) 1.2200
Primary Workpiece Material Stainless Steel; Steel
Primary Workpiece Material Code P; M
Iso Code DNMG150408UG
Standards ISO; ANSI
Manufacturers Catalog Number 22000368
Material Grade P35; M30; M10; P20
Proprietary Coating Designation Multilayer Coating
Coating Classification CVD
Chip Breaker UG
Rake Angle -20
Cutting Edge Style Honed; Chamfered
Industry Standard Number DNMG432UG
Width (Decimal Inch - 4 Decimals) 0.5000
Multi-Use Tool No
Full Radius No
Multi-Use Application Back Boring; Facing; Turning; Back Turning; Boring
ANSI Size Code 432
ISO Size Code 150408
UNSPSC Code 23242105
Insert Size Code 432
Country of Origin South Korea

Internal Reference: 22000368
Marca:: YG1
