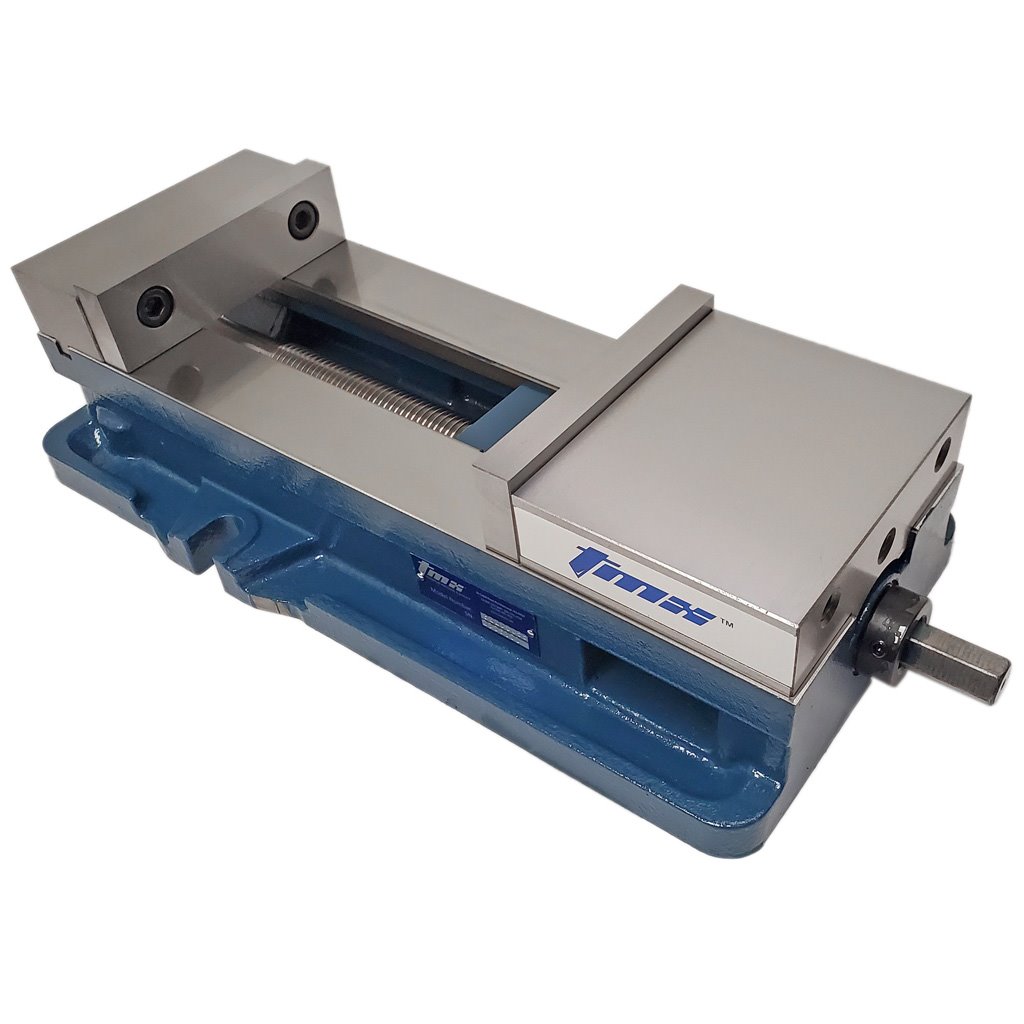

PRENSA TOOLMEX 8" ANCHO, 10" DE APERTURA 3-220-0081

Weight lb 150
Body Ductile Iron
Jaws Hardened Steel
Torque, Paralellism, Flatness, Perpendicularity ft.lbs. See Drawing
Repeatability T+/-0.01mm.
Overall Length A in 24.311
Body Length B in 21.850
Bed Height C (+/- 0.000315" ) in 3.3100
D in 1.969
E in 2.205
F in 2.283
Jaw Opening G in 10.433
H in 0.953
I in 6.181

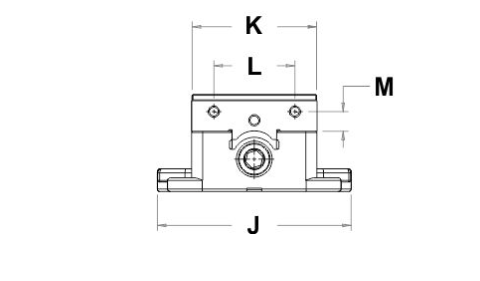

Body Width J in 11.591
Jaw Width K in 8.110
L in 4.724
M in 1.260

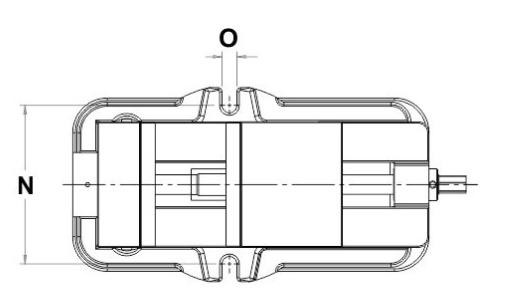

N in 9.528
O in 0.709

Body 1
Main Screw (included in 3-220-8102) 2
Set Screw (included in 3-220-8102) 5
Vise Nut 6
Brush (2) 7
Moveable Jaw 8
Bolt 9
Bolt 10
Semi-sphere Segment 11
Fixed Jaw 12
Bolt (2) 13
Collar (included in 3-220-8102) 3
Jaw Plates 14
Bearing Thrust Collar 4
Bolt (4), SHCS, 5/8-11X1.25 LG 15
Handle Socket 16
Handle Bar 17
Pin 18
Chip Cover 19

Internal Reference: 3-220-0081
Marca:: TOOLMEX
