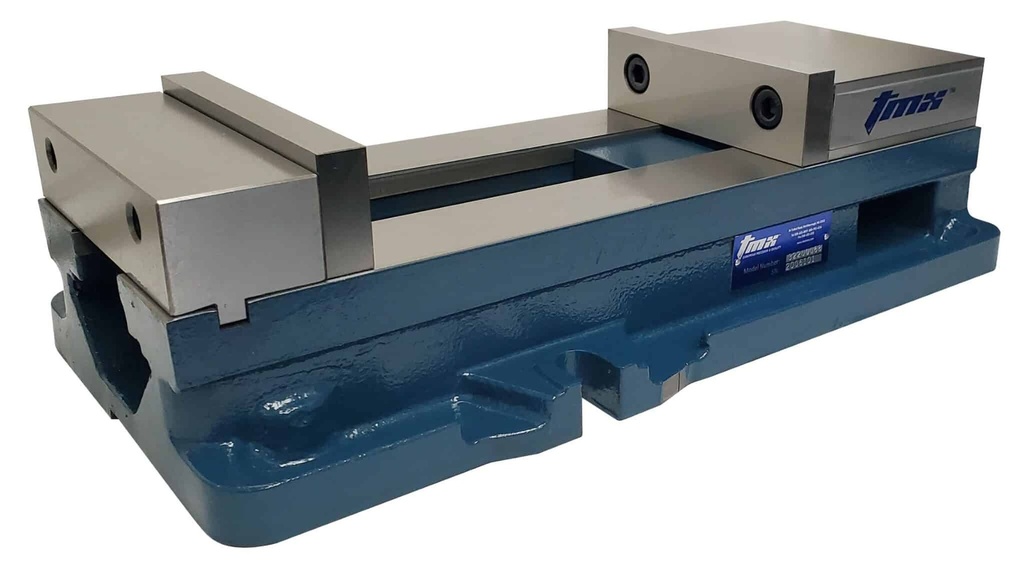

X Machine Vise, 9.13" Jaw Opening TOOLMEX

Weight lb 68
Body Ductile Iron
Jaws Hardened Steel
Torque, Paralellism, Flatness, Perpendicularity ft.lbs. drawing available
Repeatability T+/-0.01mm.
Overall Length A in 18.323
Body Length B in 16.810
Bed Height C (+/- 0.0005") in 2.8750
D in 1.485
E in 1.752
F in 2.312
Jaw Opening G in 9.130
H in 0.709
J in 4.000
Jaw Width K in 5.945
L in 3.874
M in 0.937
Body Width N in 7.334
P in 0.6874
Q in 5.972

Internal Reference: 3-220-X69
