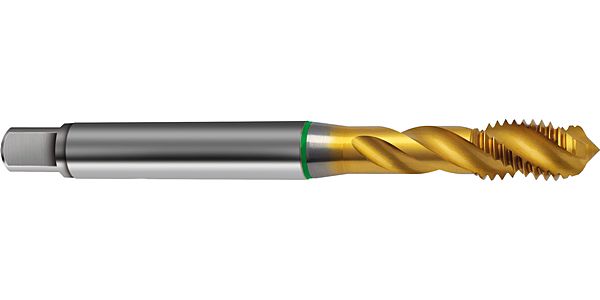

MACHUELO M8X1.25 STI, 3FL, 6H, HSSE+TIN, GHURING

Connection code machine side straight shank
Internal cooling without
Norm DIN 40435
Surface TiN
Discount group 103
Type 1011
Cutting direction right-hand
Type N R40
Material HSS-E
Additional information Internal threading
Form C
Coloured ring green ring
Threads EG/STI M
Tolerance class thread 6H mod
Hole type blind hole
Groove 40° right hand helix
Chamfer lead length 2-3
Code no. 14.000
Weight 0.109
No of cutting edges 4
Total length 110.000
Thread length 20.000
Groove length 50.000
Usable length 54.000
Wrench opening 1 9.000
Neck Ø 11.800
Core hole Ø 14.50
Shank Ø 12.000
Nominal dimension thread EG/STI M14
Pitch 2.000
External Ø 16.662
Reach length 59.000
Statistical goods number 82074010

Internal Reference: 4049844010055
