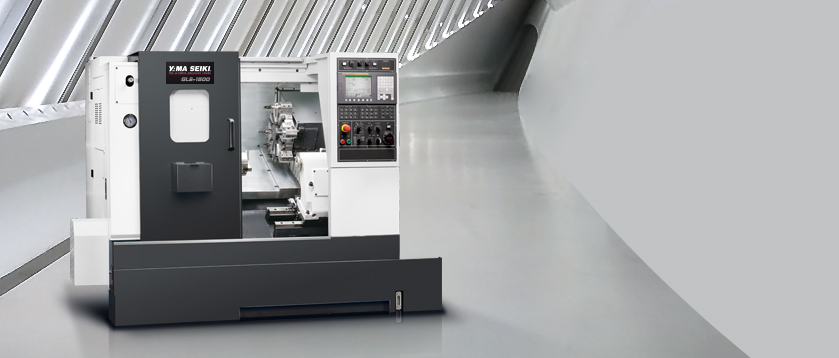

GLS1500 LYS TORNO CNC CON SUBHUSILLO Y EJE "Y" MARCA YAMASEIKI

1. Fanuc 0i-TF PLUS Control with 10.4" Color LCD
2. Fanuc Alpha Spindle and Servo Drives
3. Fanuc AC 15 HP (Cont.), 20 HP (30 min.), 25 HP (Peak) Dual Winding Spindle Motor
4. Single Spindle Speed Configuration
5. Direct Belt Driven Spindle
6. Max Turning Length: GLS-1500L (MS/YS): 540 mm (21.25”) (Base on the 6” chuck)
7. Main Spindle: RPM GLS-1500L (MS/YS): 20 ~ 6,000 RPM
8. Main Spindle Chuck (Including One Set of Soft Jaws): GLS-1500L (MS/YS) – 6 inch 3-Jaw Through-Hole (52 mm) BIG-BORE Power Chuck
9. 12 Station 12 Live Servo Indexing Turret (ER-25) With 1” OD and 1-1/2” ID Tooling Shank
10. Full CS Axis Control on Main and Sub Spindle with Disk Brake
11. Sub Spindle RPM: 6,000 RPM Single Spindle Speed Configuration
12. Sub Spindle Chuck (Including One Set of Soft Jaws): Taiwan-Made 5 inch 3-Jaw Power Chuck
13. Pneumatic Sub Spindle Parts Ejector
14. Coolant Flush for Sub Spindle Slide Way Cover
15. X/Z Axis Fanuc AC 4.0 HP Servo Motor with Absolute Encoder
16. Y Axis travel 35 mm with Fanuc AC 2.2 HP Servo Motor [Y Model only]
17. Guide Way: Linear Guide Ways
18. Grundfos 94 PSI High Pressure Coolant Pump (MTH 2-50/5) with Roll-Out Coolant Tank
19. Chip Pan
20. Operation and Maintenance Manuals, Parts List, Electrical Drawings, and Factory Test Report
21. Three Color Operation Status Signal Light Tower
22. Tool Box with Emergency Maintenance Electrical Part Package
23. Standard Tool Holder and Sleeves Package
24. 0 Degree Live Tool Holders (Collet: ER-25) x 2
25. 90 Degree Live Tool Holders (Collet: ER-25) x 2
26. Safety Features: Fully Enclosed Guarding, Door Interlock, Hydraulic Pressure Safety Switch, Program Protect,
Chuck Clamp/Unclamp Confirmation
PERFORMANCE PACKAGE INCLUDES:
- SPINDLE ORIENTATION - 1 DEGREE INDEXING
- USER DEFINABLE MACRO
- 3 COLOR TOWER SIGNAL
- UPGRADE CHIP PAN TO 47” SIDE DISCHARGE CHIP CONVEYOR
- OIL SKIMMER
- RENISHAW (HPRA) REMOVABLE TOOL SETTER FOR MAIN SPINDLE
- UPGRADE TO 132 PSI HIGH PRESSURE COOLANT PUMP (MTH-2/70)
- 2-SPEED SPINDLE MOTOR CONFIGURATION
BAR FEED AUTOMATION PACKAGE INCLUDES:
- BAR FEEDER INTERFACE FOR YAMA SEIKI BAR FEEDER
- PARTS CATCHER WITH EXTERNAL STYLE PARTS CONVEYOR
- TOOL LOAD MONITORING FUNCTION & TOOL LIFE MANAGEMENT
MACHINE INCLUDES THE FOLLOWING:
12/24 Station Live Turret
Single-Speed Motor Configuration
Renishaw HPMA Tool Setter for Main & Sub spindle
Air curtain for Sub Spindle
Coolant thru Sub Spindle
Dynamic Graphic Display
Smart chuck sensor for Main & Sub Spindle

Internal Reference: GLS1500YLS
Marca:: YAMASEIKI
