10.639.453 Insert Holder Set IH1SW53C BIG DAISHOWA

Standard insert holders for CC- type inserts with 90° lead angle.
Suitable for balanced cut amd Stepped Cut for through and blind holes.

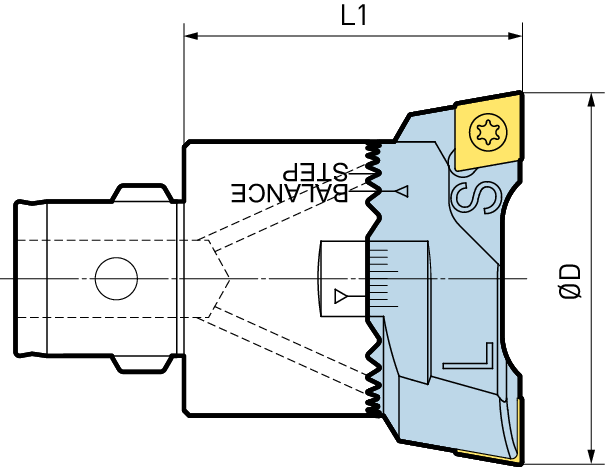

ØD : 53 - 70
L1: 57
Head: SW53
Weight (kg): 0.19
Insert: CC 12
WPH S: 639.451
WPH L: 639.452

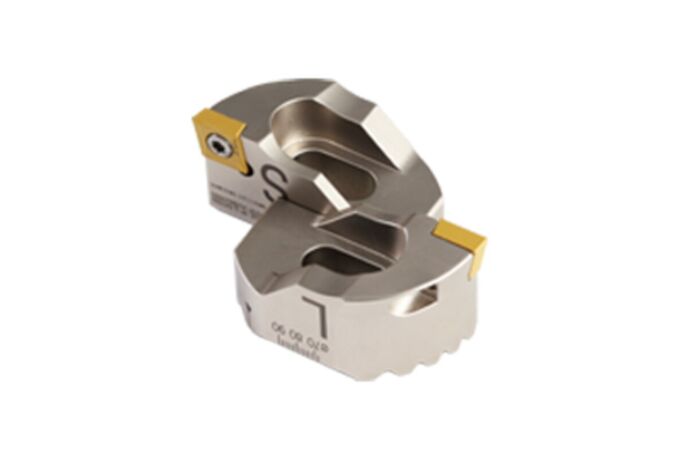

Consisting of two insert holders with different lengths, type S (short) and L (long).
The insert holders are also available by the piece as spare parts.
L1 depends on the length of the boring head.

Referencia interna: 10.639.453
Marca:: BIG DAISHOWA
