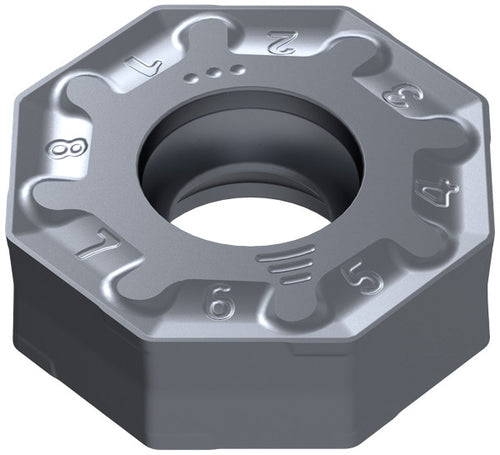

OAKU 060508SL-M50 CTPK220 5100160900 CERATIZIT

Name Ceratizit OAKU 060508SL-M50 CTPK220 5100160900
EDP # 0714968
Workpiece Material(s) Cast Iron (Red) All Materials (White)
Weight (1 pc.) 1.0 oz 16.1 g
designation 060508SL

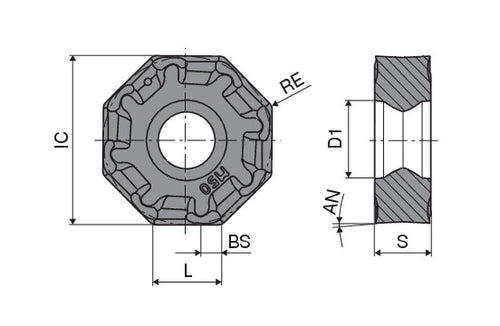

Corner radius / RE 0.0315" 0.800 mm
Inscribed circle diameter / IC 0.6732" 17.100 mm
Fixing hole diameter / D1 0.2283" 5.800 mm
Cutting edge length / L 0.2362" 6.000 mm
Trailing edge length / BS 0.0787" 2.000 mm
Insert thickness / S 0.2228" 5.660 mm
Clearance angle major / AN 3 °
Coating name / Grade (Ceratizit) / COATN CTPK220
