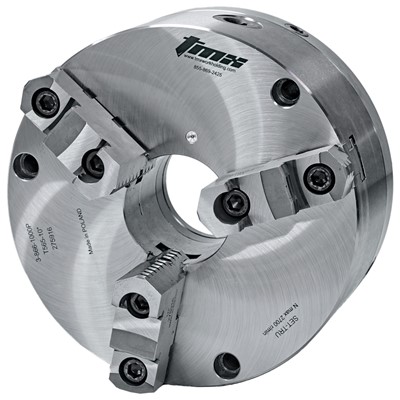

3-866-0600P Scroll Chuck 6" TOOLMEX

Selling Unit EA
Chuck Type SET-TRU Scroll
Chuck Size in 6
Body Material Forged Steel
Number of Jaws 3
Jaw Type 2pc
Weight lb 29
Mount Type Front
Gripping Force daN 3100
Max RPM RPM 3500
Runout (T.I.R.) in 0.0006
Diameter D in 6.299
Recess Diameter B in 3.386
Recess Depth C in 0.709
Hole Diameter E in 1.654
Bolt Circle F in 5.512
Body Height H in 3.484
Jaw Height H1 in 1.732
Number of bolts and thread size S 3 x M10x1.5
Fine Adjustment Screw n 4 x M18x1

d1 Solid Jaws in 0.118 - 2.52
d1 Two-Piece Jaws in 0.118 - 2.52
d2 Solid Jaws in 1.97 - 4.21
d2 Two-Piece Jaws in 2.44 - 4.76
d3 Solid Jaws in 3.86 - 6.30
d3 Two-Piece Jaws in 4.53 - 6.30
d4 Solid Jaws in 1.65 - 3.94
d4 Two-Piece Jaws in 1.65 - 3.81
d5 Solid Jaws in 3.70 - 6.06
d5 Two-Piece Jaws in 3.46 - 5.75

Referencia interna: 3-866-0600P
Marca:: TOOLMEX
