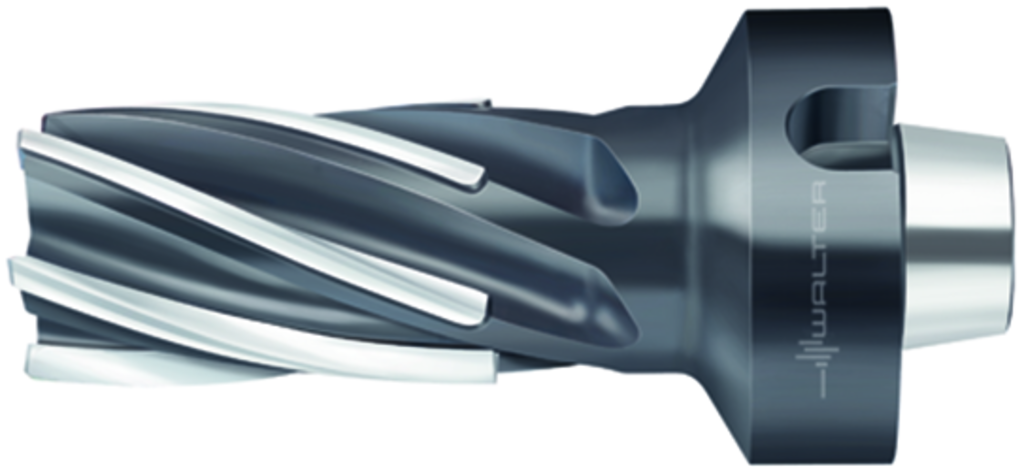

F1682.N8.050.Z06.80.K WALTER

Ctd min de pedido 1
Sub Marca Walter
Para uso en mtl ISO K
Tool style code 1
Cutting diameter (A11): 50 mm
Neck diameter A5 48 mm
Depth of cut maximum B2 80 mm
Protruding length B3 135 mm
Overall length B5 153 mm
Functional length B71 135 mm
Neck length B9 102
Connection code type machine side C11 NCT
Connection code param at machine side C12 01
Connection code unit base machine side C14 8
Connection code style machine side C15 5
Connection size code machine side C2 0800
Connection diameter machine side C3 80 mm
Shank length C4 18 mm
Rotational speed maximum D6 6500 1/min
Weight of item kg 2.509 D7
Rake angle radial E2 5 °
Rake angle axial E3 26 °
Ramping angle maximum E4 1.2 °
Cutting direction F1 R
Peripheral effective cutting edge count F21 6
Face effective cutting edge count F22 6
Flute helix hand F3 R
Ángulo de helice de flauta F4 26 °
Corner chamfer width G2 0.8 mm
Corner chamfer angle G3 45 °
Coolant entry style code H21 0
Coolant exit style code H22 0
Grade manufacturer's designation H3 WKM
Body material code H4 S
Coating H5 unbeschichtet
Data chip provision J7 0
Tool designation F1682.N8.050.Z06.80.K
Cutting edge diameter D c js16 50 mm
Corner chamfer width l 11 0.8 mm
cutting edge length L c 80 mm
Functional length l 4 135 mm
Shank diameter d 1 80 mm
Number of teeth Z 6
weight of item 2.5 kg

Referencia interna: 5001613
