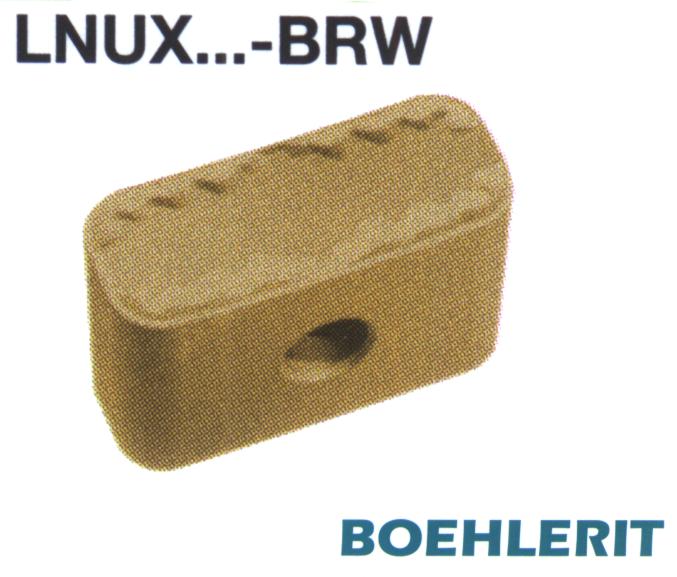

LNUX191940SNBRWLCP25T (LNUX 191940SN-BRW LCP25T) BOEHLERIT

J20 Technical product number LNUX191940SN-BRW LC215B
A1 Insert included angle 90 Degree
A2 Clearance angle major 0 Degree

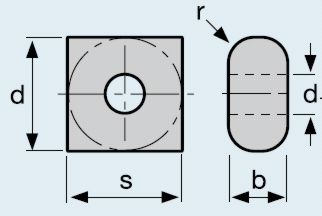

B1 Cutting edge length 0.750000 in
B2 Insert width 0.393701 in
B3 Inscribed circle diameter 0.750000 in
C1 Insert thickness 0.750000 in
D1 Corner radius 0.157480 in
E41 Cutting edge condition code S - Chamfered and rounded
E9 Chip breaker manufacturers designation BRW
F1 Insert hand N - Neutral
G1 Tolerance class insert U - Not treated
G4 Insert thickness total 0.750000 in
G5 Insert mounting style code 2 - With cylindrical bore
G6 Fixing hole diameter 0.250000 in
H11 Standard designation of the grade, main application HC-P15
H12 Standard designation of the grade, 2nd application HC-K15
H2 Coolant supply property 0 - Without coolant supply
H3 Grade manufacturer's designation LC215B
H5 Coating MT-Al2O3
ISISO ISO property 0
J11 Standard designation LNUX191940SN

Referencia interna: 5055941
Marca:: BOEHLERIT
