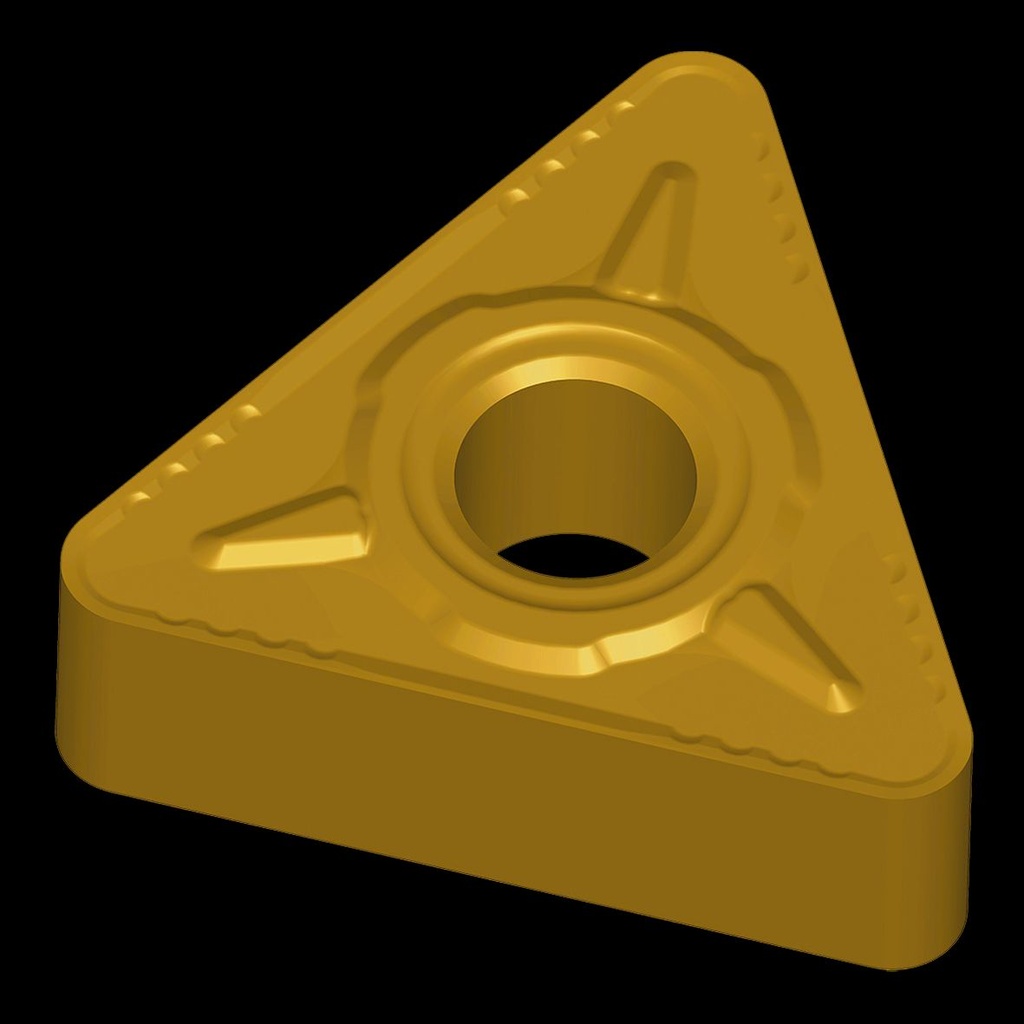

TNMG220408BMSBCM25T (TNMG 220408-BMS BCM25T) BOEHLERIT

chip breaker BMS
grade BCM25T
delivery quantiy min 10
name of tool system Drehen-ISO
corner angles [EPSR] 60
length of cutting edge [L] 22
inner circle [IC] 12,7
cutting edge height [S] 4.76
corner radius [RE] 0.8
insert execution r/n/l [IH] N
insert height [S1] 4.86
cutting material [GRADE] BCM25T
coating [COATN] PVD
coating Hyper-8
Norm [NSM] DIN-4000-76
S1 secondary 25 - 45
S2 secondary 20 - 40
S3 secondary 30 - 50
S4 secondary 15 - 50
P1 secondary 100 - 200
P2 secondary 100 - 180
M1 main 130 - 200
M2 main 90 - 180
insert size TNMG 2204
edges/ insert 6
insert shape TNMG

Referencia interna: 5092761
Marca:: BOEHLERIT
