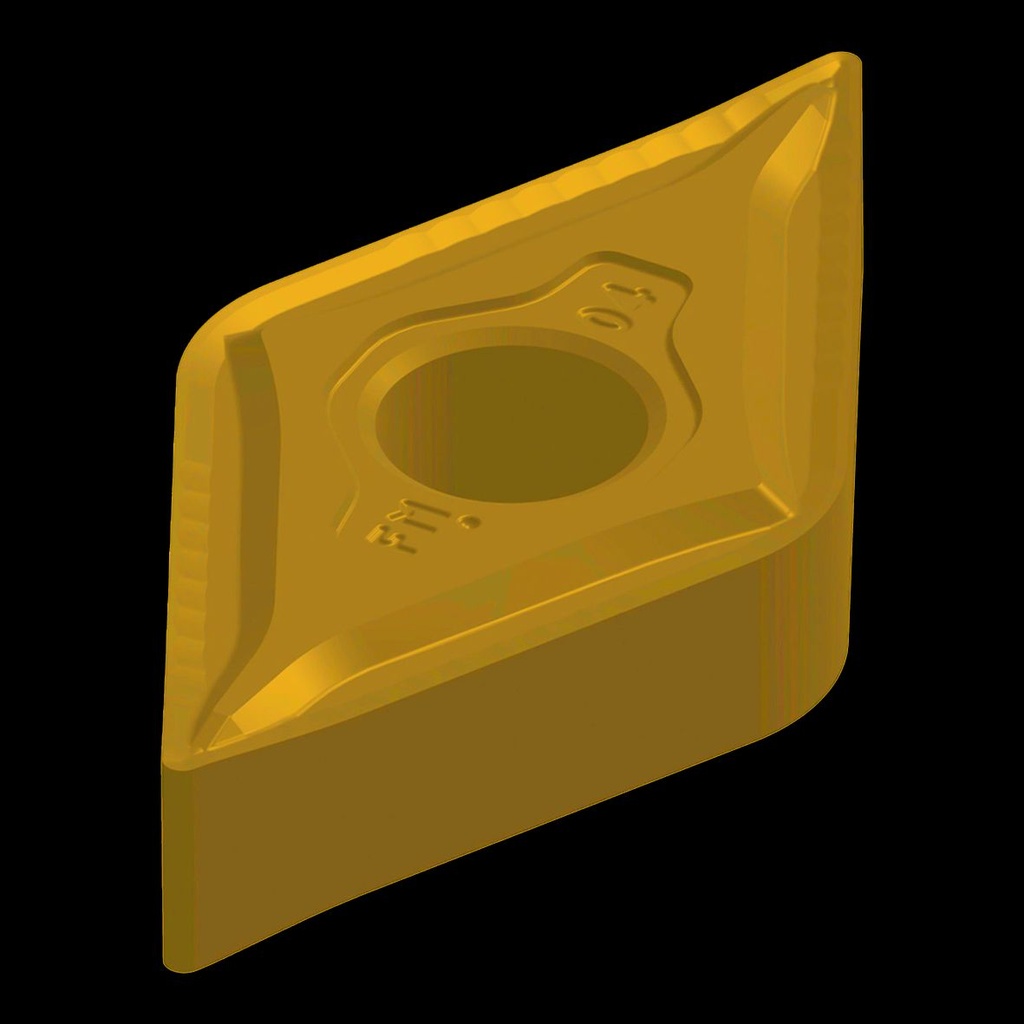

DNGG150408FMSBCS20T (DNGG 150408-FMS BCS20T) BOEHLERIT

chip breaker FMS
grade BCS20T
delivery quantiy min 10
name of tool system Drehen-ISO

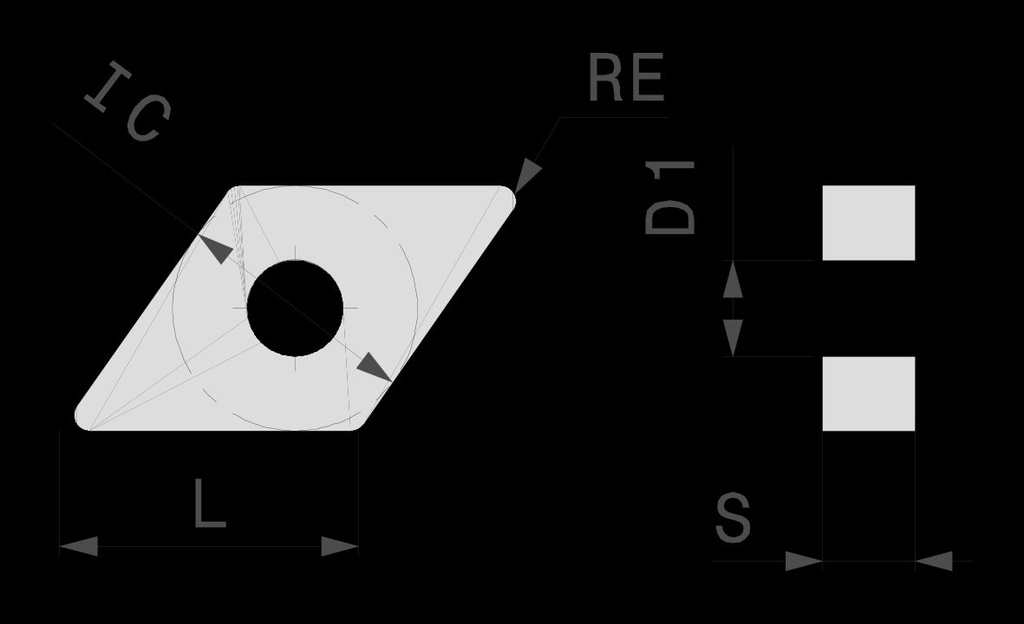

corner angles [EPSR] 55
length of cutting edge [L] 15.5
inner circle [IC] 12,7
cutting edge height [S] 4.76
corner radius [RE] 0.8
insert execution r/n/l [IH] N
insert height [S1] 4.76
cutting material [GRADE] BCS20T
coating [COATN] PVD
insert size DNGG 1504
edges/ insert 4
coating Hyper-8
insert shape DNGG
Norm [NSM] DIN-4000-76
H1 secondary 15 - 40
S1 main 25 - 65
S2 main 20 - 50
S3 main 30 - 70
S4 main 15 - 50
M1 secondary 100 - 180
M2 secondary 70 - 160

Referencia interna: 5093123
Marca:: BOEHLERIT
