MCMNN 16-4D Toolholder TOOLMEX

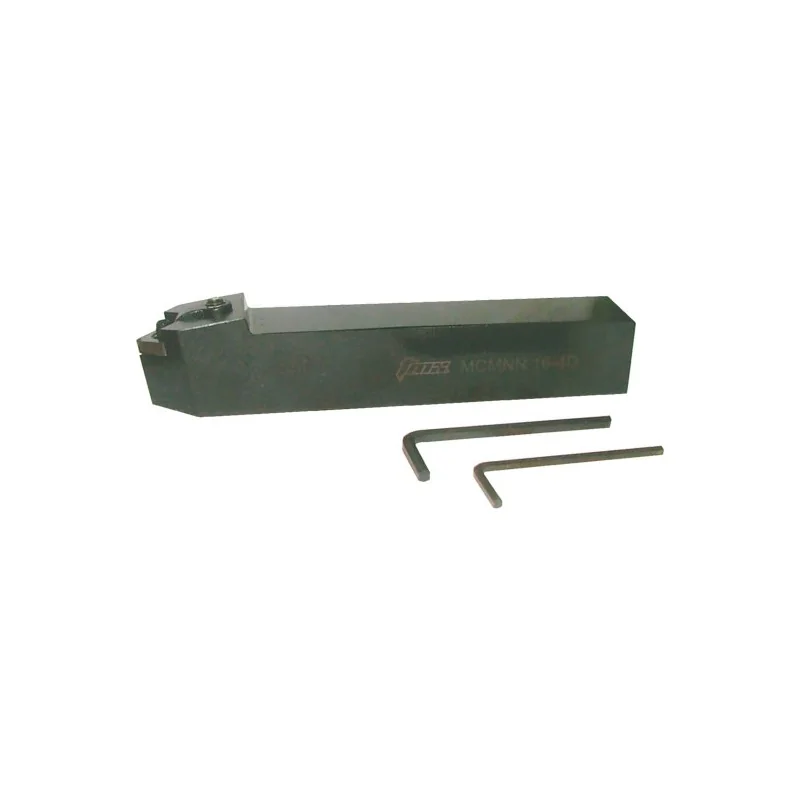

MCMNN Style, Neutral hand, 1 Inch Square Shank Toolholder, 6.00 Inch OAL, with 40° Lead for CNxx 43x Inserts

Style MCMNN 16-4D
Kr 40°
Shank Diameter d in 1.00
Length L in 6.0
Insert Geometry CNGG, CNGP, CNMA, CNMG, CNMM, CNMP
Insert Size ASA 43
****** Tolerances ******
Tolerance: Kr = +/- 1°
Tolerance: H = +/-0.013 mm
Tolerance: F = +/-0.010 mm
Tolerance: B = +/-0.013 mm
Tolerance: L = +0.098/-0.0 mm

****** Spare Parts ******
Shim 6-998-6009
Shim Screw 6-998-6543
Lock Pin 6-998-6265
Clamp 6-998-6415
Clamp Screw 6-998-6526
Hex Key 6-998-150
Hex Key 2 6-998-153
Anti Seize Lube 290-ASEIZE-03
2015 TMX Cutting Tools Catalog Page 167

Referencia interna: 6-711-016
