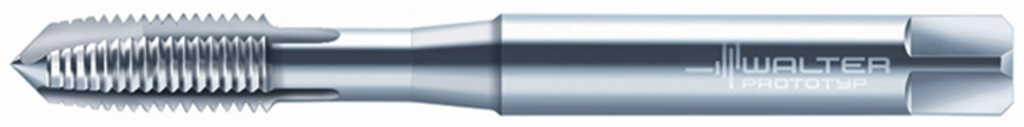

P20310-M7 WALTER

Ctd min de pedido 1
Sub Marca Walter Prototyp
Para uso en mtl ISO P
Tool style code 2
Thread param type (A11): M
Thread diameter A21 7 mm
Thread designation outside A25 M 7
Thread pitch A3 1 mm
Thread tolerance class A5 6H
Gate diameter A6 5.95 mm
Neck diameter A9 5.6 mm
Thread cutting part length B1 15 mm
Usable length B2 30 mm
Overall length B3 83 mm
Tap chamfer length B4 4.5 mm
Connection code type machine side C11 ZYL
Connection code param at machine side C12 21
Connection code unit base machine side C14 0
Connection code style machine side C15 5
Connection size code machine side 0070 C2
Connection diameter machine side C3 7 mm
ISO-tolerance class shank diameter C31 h9
Shank length C4 27 mm
Flute count D1 3
Flute helix hand D2 N
Ángulo de helice de flauta D3 0 °
Weight of item D7 0.024 kg
Cutting direction F1 R
Tap type identifier G21 1
Plug style G3 B
Coolant entry style code H21 0
Coolant exit style code H22 0
Grade manufacturer's designation H3 UNBESCHICH
Body material code H4 S
Coating H5 unbeschichtet
Standard J1 DIN 371
Data chip provision J7 0
Tool designation P20310-M7
Thread size D N M 7
thread pitch P 1 mm
Overall length l 1 80 mm
Cutting edge length L c 15 mm
Useable length l 3 30 mm
Shank diameter d 1 7 mm
clamping width ⃞ 5.5 mm
Driving square length l 9 8 mm
Number of grooves N 3

Referencia interna: 6149147
