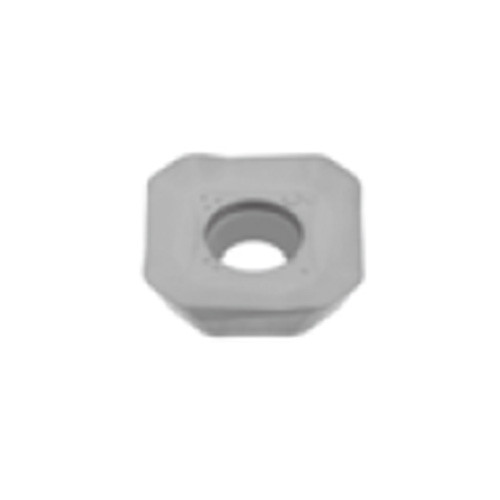

SWMT13T3AFPR-MJ AH120 TUNGALOY
Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
Grade AH120
Application | Face Milling |
Maximum Feed per Tooth (fz(max)) 0.0098 in/tooth

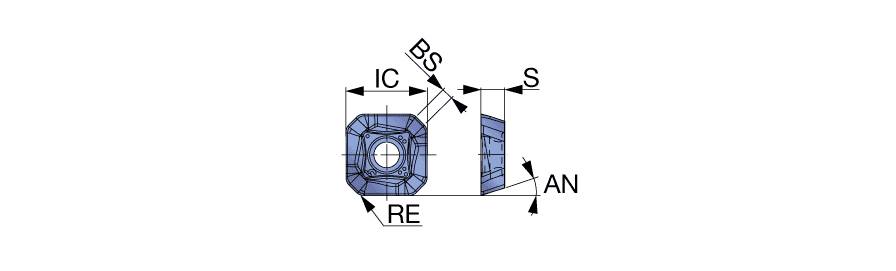

Corner Radius (RE) 0.059″
Cutting Edge Material Carbide
Depth of Cut Maximum (APMX) 0.157″
Tool Type Single sided Inserts
Insert Width (W1) 0.547″
Minimum Feed per Tooth (fz(min)) 0.002 in/tooth
Inscribed Circle Diameter (IC) 0.547″
Number of Cutting Edges 4
Insert Thickness (S) 0.157″
Measurement Type Inch
Wiper Edge Length (BS) 0.079″
Body Material Carbide
Coating TiAlN
Referencia interna:
6846104
Marca::
TUNGALOY
