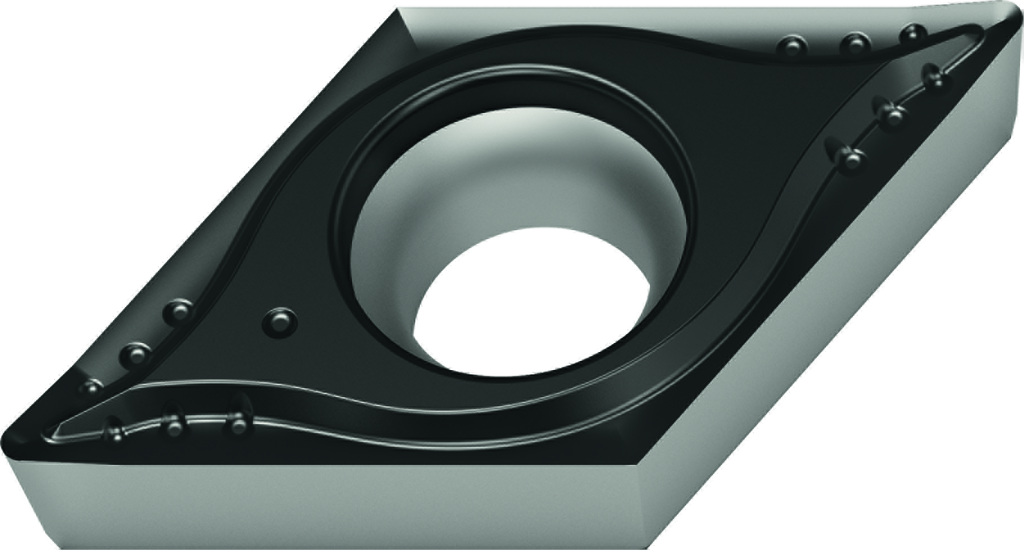

DCGT11T308-MM4 WSM01 WALTER

Ctd min de pedido 10
Sub Marca Walter
Cod. ANSI DCGT3(2.5)2-MM4 WSM01
Tool style code 3
Insert included angle (A11): 55 °
angulo mayor de holgura A2 7 °
Cutting edge length B1 11.628 mm
Inscribed circle diameter B3 9.525 mm
Insert thickness C1 3.969 mm
radio de punta D1 0.8 mm
Weight of item D75 0.006 kg
Cutting edge condition code E41 E
Chip breaker face count E6 1
Chip breaker manufacturers designation E9 MM4
Insert hand F1 N
Insert index count F2 2
Tolerance class insert G1 G
Insert thickness total G4 3.969 mm
Insert mounting style code G5 3
Fixing hole diameter mm 4.4 G6
Coolant supply property H2 0
Grade manufacturer's designation H3 WSM01
Coating H5 TiAlN
Tipped cutting edge code H6 S
Standard designation J11 DCGT11T308
Cutting edge length_pulg B1 0.4578 in
Inscribed circle diameter_pulg B3 0.375 in
Insert thickness_pulg C1 0.1563 in
radio de punta_pulg D1 0.0315 in
Weight of item_pulg D75 0.0132 lbs
Insert thickness total_pulg G4 0.1563 in
Fixing hole diameter_pulg G6 0.1732 in
ANSI DCGT3(2.5)2-MM4 WSM01
Tool designation Designation DCGT11T308-MM4 WSM01
Cutting edge length l 0.458 pulg
radio de punta r 0.032 pulg
Feed per revolution f 0.005 - 0.013 pulg
Depth of cut a p 0.02 - 0.118 pulg
Cutting edge length l 11.63 mm
radio de punta r 0.8 mm
Feed per revolution f 0.12 - 0.32 mm
Depth of cut a p 0.5 - 3 mm

Referencia interna: 7021258
