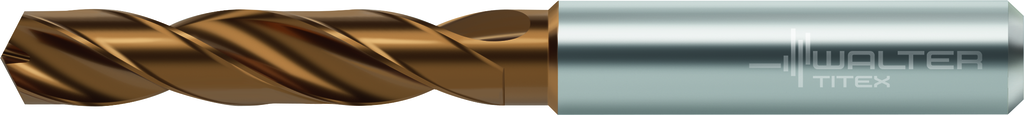

DC160-03-06.500A0-WJ30ET WALTER

Ctd min de pedido 1
Sub Marca Walter Titex
Linea Advance
Para uso en mtl ISO K
Tool style code 1
Cutting diameter 1st step minimum (A11): 6.5 mm
Protruding length B3 43.003 mm
Usable length B4 24 mm
Overall length B5 79 mm
Length chip flute B6 34 mm
Point length B7 1.183 mm
Functional length B71 77.817 mm
Neck length B9 24
Connection code type machine side C11 ZYL
Connection code param at machine side C12 01
Connection code unit base machine side C14 0
Connection code style machine side C15 5
Connection size code machine side C2 0080
Connection diameter machine side C3 8 mm
ISO-tolerance class shank diameter C31 h6
Shank length mm 36 C4
Flute count D1 2
Flute helix hand D2 R
Ángulo de helice de flauta D3 30 °
Rotational speed maximum D6 100000 1/min
Weight of item D7 0.038 kg
angulo de punta 1st step E1 140 °
Cutting direction F1 R
Coolant entry style code H21 0
Coolant exit style code H22 0
Grade manufacturer's designation H3 WJ30ET
Body material code H4 H
Coating H5 TiSiAlCrN/AlTiN
Standard J1 DIN 6537 K
Standard letter to the standard number J11 HA
Data chip provision J7 0
Tool designation DC160-03-06.500A0-WJ30ET
Cutting edge diameter D c 6.5 mm
Cutting edge diameter D c 0.2559 pulg
Cutting edge length L c 24 mm
Overall length l 1 79 mm
Projection length l 2 34 mm
Shank length l 5 36 mm
Shank diameter d 1 8 mm

Referencia interna: 7377133
