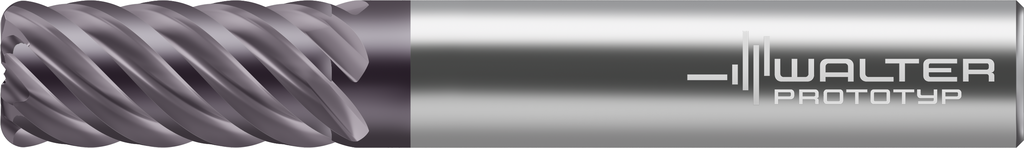

MC128-12.0A6B050-WJ30TF WALTER

Ctd min de pedido 1
Sub Marca Walter Prototyp
Linea Advance
Para uso en mtl ISO P
Tool style code 1
Cutting diameter (A11): 12 mm
Depth of cut maximum B2 26 mm
Protruding length B3 38 mm
Overall length B5 83 mm
Functional length B71 83 mm
Neck length B9 26
Connection code type machine side C11 ZYL
Connection code param at machine side C12 01
Connection code unit base machine side C14 0
Connection code style machine side C15 5
Connection size code machine side C2 0120
Connection diameter machine side C3 12 mm
ISO-tolerance class shank diameter C31 h6
Shank length C4 45 mm
Rotational speed maximum D6 80000 1/min
Weight of item kg 0.129 D7
Rake angle radial E2 10.5 °
Rake angle axial E3 13.5 °
Ramping angle maximum E4 4 °
Cutting direction F1 R
Peripheral effective cutting edge count F21 6
Face effective cutting edge count F22 6
Flute helix hand F3 R
Ángulo de helice de flauta F4 50 °
radio de punta G1 0.5 mm
Coolant entry style code H21 0
Coolant exit style code H22 0
Grade manufacturer's designation H3 WJ30TF
Body material code H4 H
Coating H5 TiAlN
Standard J1 DIN 6527 L
Standard letter to the standard number J11 HA
Data chip provision J7 0
Tool designation MC128-12.0A6B050-WJ30TF
Cutting edge diameter D c 12 mm
radio de punta r 0.5 mm
Cutting edge length L c 26 mm
Overall length l 1 83 mm
Functional length l 4 38 mm
Shank diameter d 1 12 mm
Number of teeth Z 6

Referencia interna: 7872787
