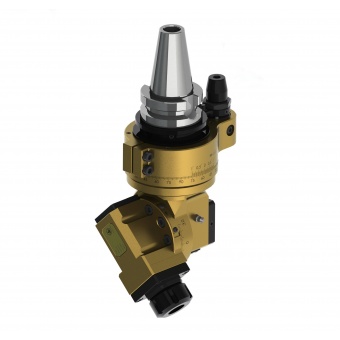

CAT50-ER 25 UNIVERSAL ANGLE HEAD TYPE AHL HOLDWELL

◎ Cutting angle can be set from 0°~ ±120°for various applications.
◎ Compact design provides extra strength, oil-proof, dust-proof, and duration.
◎ Can be automatic tool changed. Increases productivity.
◎ Enclosed Positioning Pin: Cutting Direction can be adjusted from 0~360 degrees. It allows higher clamping torque and cutting direction could remain during the machining.
◎ CAT50-ER25 Universal Angle Head (AHL Type)
◎ Run-out : 0.002 mm
◎ Material : Aerospace Alu. Alloy / Ductile Cast Iron / Alloy Steel
◎ R.P.M. : Max. 6000 RPM
◎ Torque : Max. 25 Nm
◎ Drilling : Max. 14 mm
◎ Tapping : Max. M10
◎ Gear Ratio : 1 : 1
◎ Standard Accessory : Open End Wrench, ER Wrench, ER Nut
◎ Output Rotation : Reverse to Input Rotation

Referencia interna: AHL-CAT50-B2.80G
Marca:: HOLDWELL
