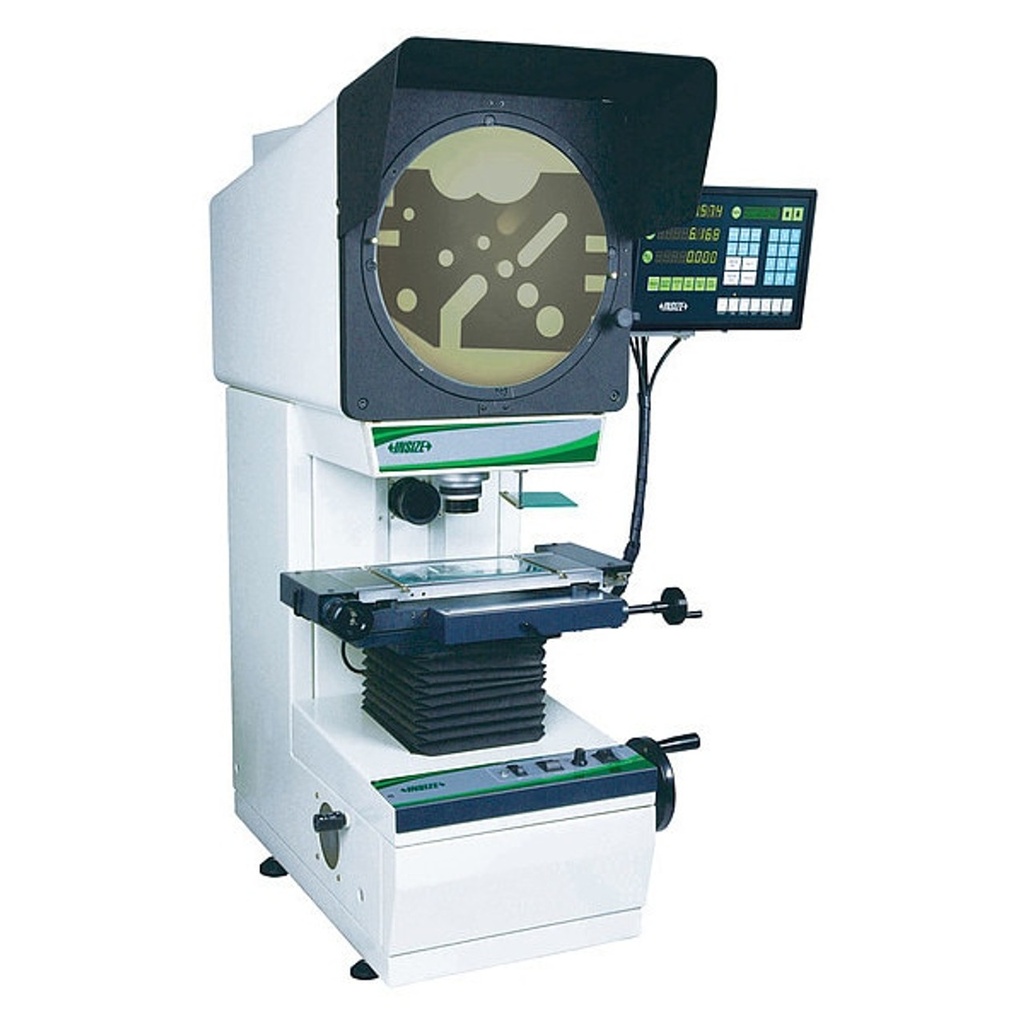

ISP-Z3015 PROFILE PROJECTOR (WITHOUT EDGE DETECTOR) (CAT B) INSIZE

Description
Optical Comparator, Resolution 0.00002 in, Accuracy +/-0.08 Percent, Contour Illumination 24V, 150W Halogen Bulb, Effective Table Working Area 13 3/8 in x 6 in, Image Type Erect Image, Magnification - Included Lens 10X, Measuring Unit Digital, Optical System Orientation Vertical, Projector Series Insize ISP-Z, Screen Size 12 in, Surface Illumination 24V, 150W Halogen Bulb, Table Size 13 3/8 in x 6 in, X-Axis Table Travel 6 in, Y-Axis Vertical Focus Travel 3.54 in, Adjustable Brightness Yes
Insize ISP-Z3015 Specifications
Item: Optical Comparator
Image Type: Erect Image
Protractor Screen: 12 in
Illumination: 24V, 150 W Halogen
Magnification: 10x
Table Size (In.): 13-3/8 x 6
Resolution: 0.00002 in
Power Supply: Corded
Reading: Digital
Capacity (Lb.) Max.: 8.82
Includes: Half-Reflection Mirror, Oblique Illumination Mirror, Overlay Chart Clip, Foot-Switch, Anti-Dust Cover
Table Travel: X Axis=6 in, Y Axis=2 in
Focusing Travel: 3.56 in
Accuracy: +/-0.08%
Size: 21.6 x 30.3 x 43.3 in
Projector Series: Insize ISP-Z
Screen Size: 12 in
Rotating Screen: +/-360 Degrees
Contour Illumination: 24V, 150W Halogen Bulb
X-Axis Table Travel: 6 in
Reference Line Style: Cross Hair Line
Surface Illumination: 24V, 150W Halogen Bulb
Magnification - Included Lens: 10X
Table Size: 13 3/8 in x 6 in
Adjustable Brightness: Yes
Y-Axis Vertical Focus Travel: 3.54 in
Optical System Orientation: Vertical
Measuring Unit: Digital
Maximum Workpiece Height: 3.54 in
Effective Table Working Area: 13 3/8 in x 6 in
Country of Origin (subject to change): China

Referencia interna: ISP-Z3015
Marca:: INSIZE
