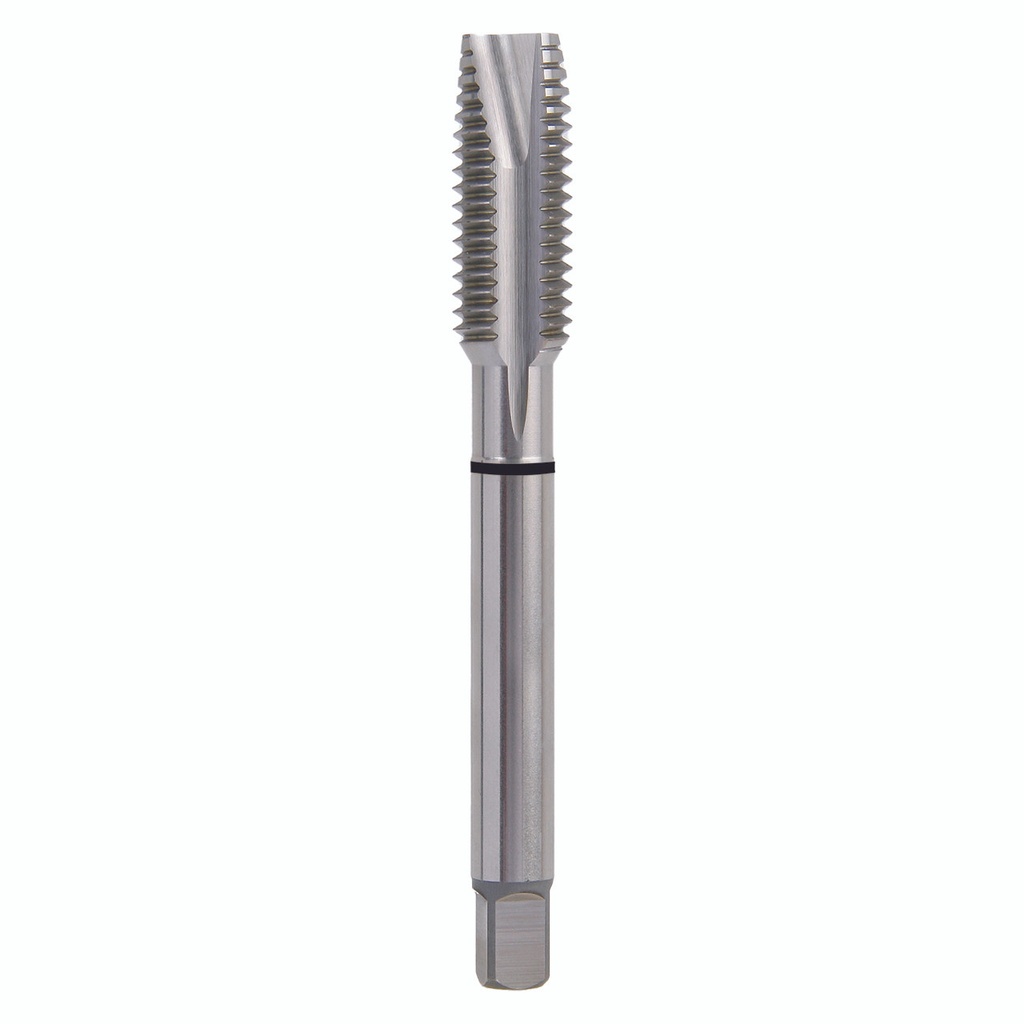

T4705C HSS-EX COMBO MODI GUN POINT TAP 3/4-10UNC GH5 108.0L YG1

Product Specifications
EDP Number T4705C
Size & Pitch 3/4-10
Diameter (Decimal Inch) 0.7500"
Diameter (mm) 19.05mm
Overall Length (Decimal Inch) 4.2500"
Length/Diameter 3.0xD
Chamfer Type Plug
Overall Length (mm) 107.95mm
Thread Length (Decimal Inch) 1.2010"
Thread Length (mm) 30.51mm
Square Length (Decimal Inch) 0.6900"
Square Length (mm) 17.53mm
Shank Diameter (Decimal Inch) 0.5900"
Shank Diameter (mm) 14.99mm
Square Size (Decimal Inch) 0.4420"
Square Size (mm) 11.23mm
Neck Diameter (Decimal Inch) 0.5770"
Connection (mm) 14.99 x 11.23mm
Connection (Decimal Inch) 0.59 x 0.442"
Useable Length (Decimal Inch) 2.0000"
Neck Diameter (mm) 14.66mm
Drill Size (Decimal Inch) 0.6591"
Drill Size (mm) 16.74mm
Useable Length (mm) 50.80mm
Thread Series UNC
Pitch Limit H5
Chamfer Length 4P-5P
Finish TICN
Blank Standard 302A
Helix Angle (Degree) 0 Degree
Number of Flutes 3
Tap Type SPPT
Shank Type Square
Coolant Through No
Ring Color Black
Trade Name Combo Tap
Series T4-C
Material HSS-EX
Product Type Spiral Flute Bottom Tap

Referencia interna: T4705C
Marca:: YG1
